Model comparison with Scikit-NeuroMSI

This tutorial covers the basic pipeline for comparing model performance on multisensory integration experiments using Scikit-NeuroMSI. We show how we can streamline model comparison by leveraging the ParameterSweep class and the built-in plotting functions of the NDResultCollection objects.

Bias and Causal Inference performance comparison

Here we compare the responses of the Kording2007 and the Cuppini2017 models in a spatial disparity paradigm. First we implement the models, setup the experiment and run the simulations:

from skneuromsi.bayesian import Kording2007
from skneuromsi.neural import Cuppini2017
from skneuromsi.sweep import ParameterSweep
import numpy as np

# Models setup
model_kording = Kording2007(position_range=(0, 90), position_res=1, n=100000)
model_cuppini2017 = Cuppini2017(
    neurons=90, position_range=(0, 90), position_res=1
)

# Experiment setup
spatial_disparities = np.array([-24, -12, -6, -3, 3, 6, 12, 24])
sp_kording = ParameterSweep(
    model=model_kording,
    target="visual_position",
    repeat=1,
    range=45 + spatial_disparities,
)

sp_cuppini2017 = ParameterSweep(
    model=model_cuppini2017,
    target="visual_position",
    repeat=1,
    range=45 + spatial_disparities,
)

## Experiment run
res_kording = sp_kording.run(
    auditory_position=45,
    auditory_sigma=32,
    visual_sigma=4,
    prior_mu=45,
    prior_sigma=30,
    noise=True,
)

res_cuppini2017 = sp_cuppini2017.run(
    auditory_position=45, auditory_sigma=32, visual_sigma=4, noise=False
)

Note: For simplicity, we ran the network model without noise.

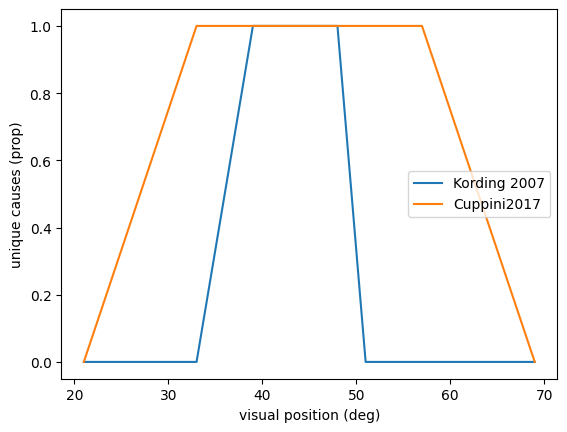

Now we generate a plot to visually compare the model performance in causal inference:

import matplotlib.pyplot as plt

ax1 = plt.subplot()
res_kording.causes().plot(ax=ax1)
res_cuppini2017.causes().plot(ax=ax1)
ax1.legend(labels=["Kording 2007", "Cuppini2017"])
ax1.set_xlabel("visual position (deg)")
ax1.set_ylabel("unique causes (prop)")

Text(0, 0.5, 'unique causes (prop)')

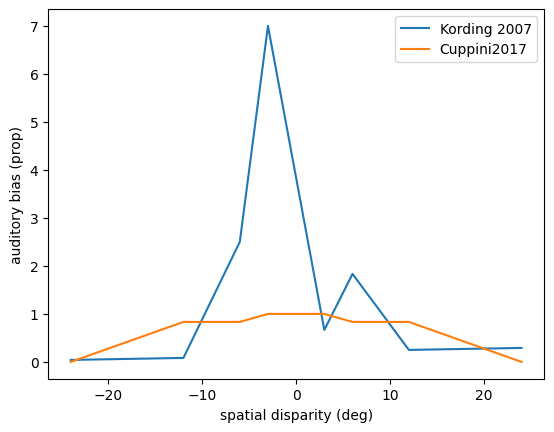

Similarly, we can generate a plot to compare auditory bias in both models:

ax2 = plt.subplot()
res_kording.bias(
    influence_parameter="auditory_position", mode="auditory"
).plot(ax=ax2)
res_cuppini2017.bias(
    influence_parameter="auditory_position", mode="auditory"
).plot(ax=ax2)
ax2.legend(labels=["Kording 2007", "Cuppini2017"])
ax2.set_xlabel("spatial disparity (deg)")
ax2.set_ylabel("auditory bias (prop)")

Text(0, 0.5, 'auditory bias (prop)')
