Ventriloquist Effect
In this example we show how we can compare models in an audio-visual spatial disparity task to reproduce the Ventriloquist Effect as shown in:
Paredes, R., Cabral, J. B., & Series, P. (2025). Scikit-NeuroMSI: A Generalized Framework for Modeling Multisensory Integration. bioRxiv, 2025-05. doi: https://doi.org/10.1101/2025.05.26.656124
Implementation of models
For this paradigm we call the relevant models that account for spatial multisensory integration:
[1]:
from skneuromsi.neural import Cuppini2017
from skneuromsi.neural import Paredes2025
from skneuromsi.mle import AlaisBurr2004
from skneuromsi.bayesian import Kording2007
model_alaisburr = AlaisBurr2004(position_range=(0, 90), position_res=1)
model_kording = Kording2007(position_range=(0, 90), position_res=1)
model_cuppini2017 = Cuppini2017(
neurons=90, position_range=(0, 90), position_res=1
)
model_paredes = Paredes2025(
neurons=90, position_range=(0, 90), position_res=1, time_range=(0, 100)
)
causal_model_paredes = Paredes2025(
neurons=90, position_range=(0, 90), position_res=1, time_range=(0, 150)
)
temporal_model_kording = Kording2007(
time_range=(0, 500), time_res=1, position_range=(0, 1), position_res=1
)
Experiment setup
We are interested to explore implicit causal inference (auditory bias) and explicit causal inference (unity judgement) responses for audio-visual stimuli at different spatial disparities.
To simulate the explicit causal inference responses, we define a customized ProcessingStrategy:
[2]:
import numpy as np
from skneuromsi.sweep import ProcessingStrategyABC
class CausesProcessingStrategy(ProcessingStrategyABC):
def map(self, result):
causes = result.causes_
del result._nddata
return causes
def reduce(self, results, **kwargs):
return np.array(results, dtype=np.float16)
Now we setup the experiment simulation for each model using the ParameterSweep class:
[3]:
from skneuromsi.sweep import ParameterSweep
dis = np.array([-24, -12, -6, -3, 3, 6, 12, 24]) # spatial disparities
sp_alaisburr = ParameterSweep(
model=model_alaisburr,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
)
sp_kording = ParameterSweep(
model=model_kording,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
)
sp_cuppini2017 = ParameterSweep(
model=model_cuppini2017,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
)
sp_paredes = ParameterSweep(
model=model_paredes,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
)
causal_sp_kording = ParameterSweep(
model=model_kording,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
processing_strategy=CausesProcessingStrategy(),
)
causal_sp_cuppini2017 = ParameterSweep(
model=model_cuppini2017,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
processing_strategy=CausesProcessingStrategy(),
)
causal_sp_paredes = ParameterSweep(
model=causal_model_paredes,
target="visual_position",
repeat=1,
n_jobs=-2,
range=45 + dis,
processing_strategy=CausesProcessingStrategy(),
)
Auditory Bias simulation
We are now ready to run the experiments and extract auditory bias responses:
[4]:
res_alaisburr = sp_alaisburr.run(
auditory_position=45,
auditory_sigma=4.695e01,
visual_sigma=4.505e01,
noise=False,
)
res_kording = sp_kording.run(
auditory_position=45,
auditory_sigma=2.490e01,
visual_sigma=2.171e01,
prior_mu=4.069e01,
prior_sigma=5.277e00,
noise=False,
)
res_cuppini2017 = sp_cuppini2017.run(
auditory_position=45,
auditory_sigma=4.511e01,
visual_sigma=2.495e01,
auditory_intensity=1.191e01,
visual_intensity=1.387e01,
noise=False,
)
res_paredes = sp_paredes.run(
auditory_position=45,
auditory_sigma=2.000e01,
visual_sigma=1.854e01,
auditory_intensity=1.113e00,
visual_intensity=7.728e00,
noise=False,
auditory_soa=None,
auditory_stim_n=1,
visual_stim_n=1,
auditory_duration=100,
visual_duration=100,
auditory_onset=0,
visual_onset=0,
)
Spatial Causal Inference simulation
Next, we run the experiments to extract explicit causal inference responses:
Note: For simplicity and computational efficiency, we are asking the models to provide causal inference responses as probability values (instead of counts) with the
causes_kindargument.
[5]:
res_kording_causes = causal_sp_kording.run(
auditory_position=45,
auditory_sigma=8.042e00,
visual_sigma=8.041e00,
noise=False,
strategy="selection",
prior_mu=6.898e01,
prior_sigma=4.501e01,
causes_kind="prob",
)
res_cuppini2017_causes = causal_sp_cuppini2017.run(
auditory_position=45,
auditory_sigma=2.803e01,
visual_sigma=8.033e00,
auditory_intensity=1.328e01,
visual_intensity=2.366e01,
noise=False,
causes_kind="prob",
causes_dim="space",
)
res_paredes_causes = causal_sp_paredes.run(
auditory_position=45,
auditory_sigma=4.215e01,
visual_sigma=1.673e01,
auditory_intensity=2.698e01,
visual_intensity=4.776e00,
noise=False,
causes_kind="prob",
causes_dim="space",
auditory_soa=None,
auditory_stim_n=1,
visual_stim_n=1,
auditory_duration=150,
visual_duration=150,
auditory_onset=0,
visual_onset=0,
causes_peak_threshold=0.15,
)
Plotting

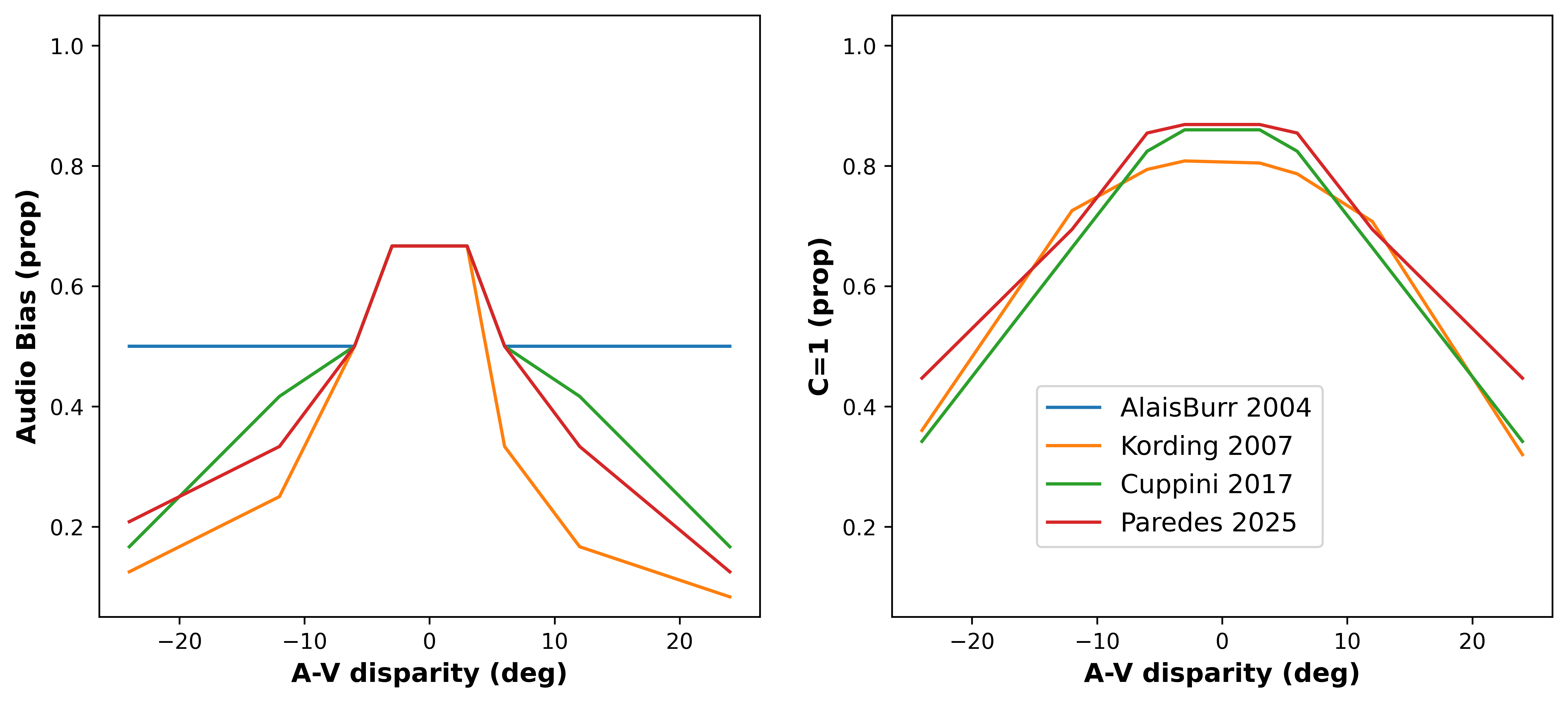

Finally we plot our results to visually compare the performance of the models:
[ ]:
import matplotlib.pyplot as plt
# initializes figure and plots
fig, axs = plt.subplots(
1, 2, figsize=(12, 5), sharex=False, dpi=600, gridspec_kw={"hspace": 0.3}
)
colors = plt.rcParams["axes.prop_cycle"].by_key()["color"]
# Panel A
ax1 = plt.subplot(121)
res_alaisburr.bias.bias_mean(
influence_parameter="auditory_position", mode="multi"
).plot(ax=ax1)
res_kording.bias.bias_mean(
influence_parameter="auditory_position", mode="auditory"
).plot(ax=ax1)
res_cuppini2017.bias.bias_mean(
influence_parameter="auditory_position", mode="auditory"
).plot(ax=ax1)
res_paredes.bias.bias_mean(
influence_parameter="auditory_position", mode="auditory"
).plot(ax=ax1)
ax1.set_ylim(0.05, 1.05)
ax1.set_xlabel("A-V disparity (deg)", size=12, weight="bold")
ax1.set_ylabel("Auditory Bias (prop)", size=12, weight="bold")
ax1.tick_params(axis="both", labelsize=10)
legend = ax1.legend(
[
"AlaisBurr 2004",
"Kording 2007",
"Cuppini 2017",
"Paredes 2025",
"Noel 2022 data",
],
fontsize=12,
loc="center left",
bbox_to_anchor=(1.4, 0.25),
)
ax1.get_legend().remove()
# Panel B
ax2 = plt.subplot(122)
ax2.set_prop_cycle(color=colors[1:4])
ax2.plot(dis, res_kording_causes)
ax2.plot(dis, res_cuppini2017_causes)
ax2.plot(dis, res_paredes_causes)
ax2.set_ylim(0.05, 1.05)
ax2.set_xlabel("A-V disparity (deg)", size=12, weight="bold")
ax2.set_ylabel("C=1 (prop)", size=12, weight="bold")
ax2.tick_params(axis="both", labelsize=10)
ax2.add_artist(legend)
<matplotlib.legend.Legend at 0x7d0aab3a4c40>
